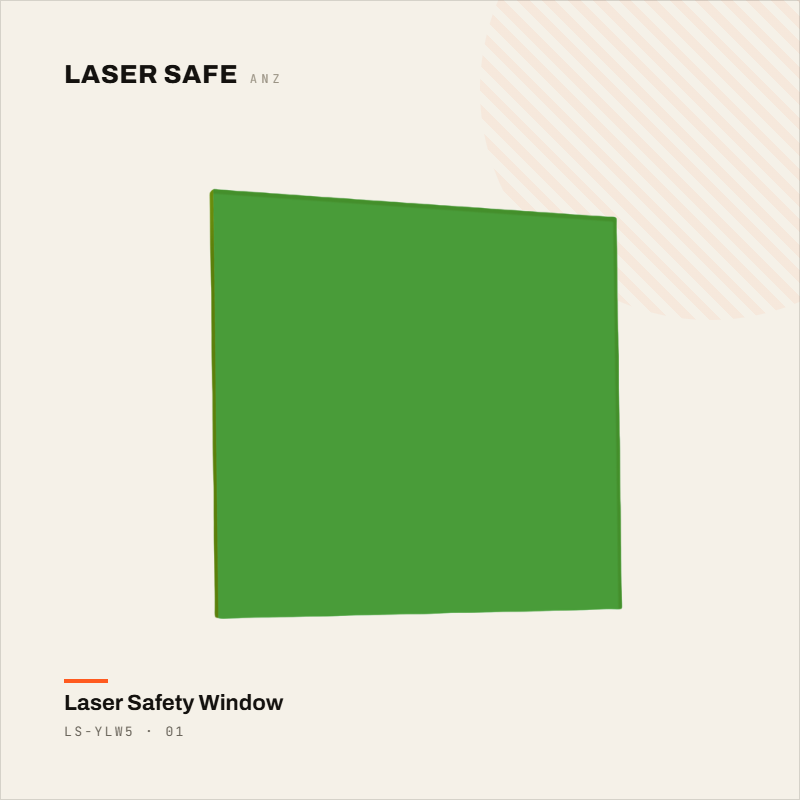

LS-YLW5 — Fiber Laser Safety Window (900–1700nm, PMMA)

LS-YLW5 — Fiber Laser Safety Window (900–1700nm, PMMA)

Price on request

Laser safety viewing window for fibre laser enclosures, 900–1700nm, EN12254. PMMA panel, standard 1000 x 1200mm, customisable to spec.

  • Optical density: 900–1030nm OD>6 · 1030–1400nm OD>7 · 1400–1700nm OD>6
  • LB rating: 930–1030nm DAB6+IAB6 · 1030–1400nm DAB4+IAB8+RAB8 · 1400–1700nm DAB2+IAB3
  • Material: PMMA
  • Transmittance: 22%
  • Standard size: 1000 x 1200mm (customisable)
  • Thickness: 5mm
  • Standard: EN12254

Common applications: enclosure and machine-guard viewing panels, fibre laser cutting and welding cells, research labs.

Order on demand — request a quote. Final price and lead time confirmed after consultation.

Request a quote

Made to order. Send us your specs and we'll confirm price and lead time.
